Ceramic 96: 96 kg/m³ ceramic fibre blanket, working temperature 1050°C

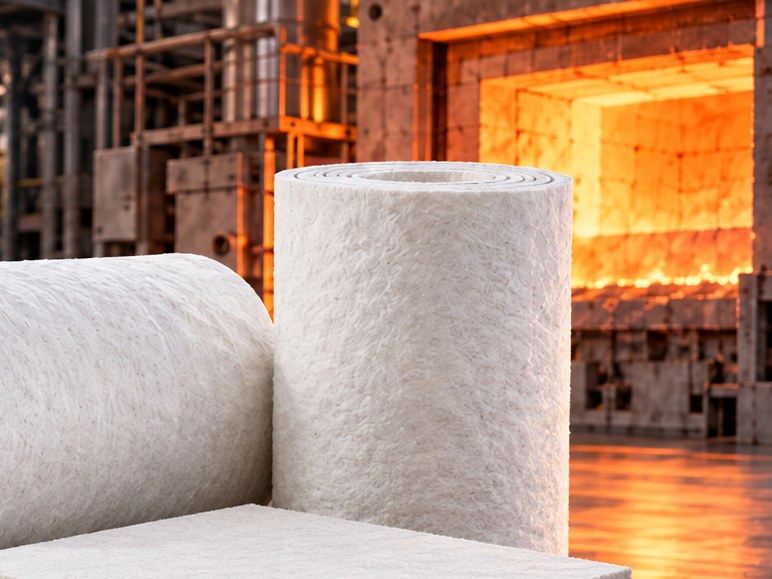

Vulcanite ProTherm: 96 kg/m³ aluminium silicate ceramic fibre blanket for extreme heat environments. Working temperature 1050°C, classification temperature 1260°C. Stocked 610mm wide in 25mm thickness.
Buy online
Dispatch within 24 hours. Delivery within 72 hours. Collection from Vulcanite, Centurion.
Could not save your cart. Enable site storage in your browser or contact us to order.
Vulcanite ProTherm: 96 kg/m³ aluminium silicate ceramic fibre blanket for extreme heat environments. Working temperature 1050°C, classification temperature 1260°C. Stocked 610mm wide in 25mm thickness.
- Aluminium silicate ceramic fibre, produced by high output blowing and spun techniques
- Working temperature 1050°C, classification temperature 1260°C
- Alumina 46%, alumina and silica combined 97%
- Iron oxide below 1,0%, sodium and potassium oxide at or below 0,5%
- White, flexible and resilient
Technical parameters
| Property | Ceramic 96 | Standard |
|---|---|---|
| Density | 96 kg/m³ | Vulcanite ProTherm datasheet |
| Working temperature | 1050 °C | Vulcanite ProTherm datasheet |
| Classification temperature | 1260 °C | Vulcanite ProTherm datasheet |
| k-value at 400°C mean | 0.090 W/mK | Vulcanite ProTherm datasheet, 128 kg/m³ blanket |
| k-value at 800°C mean | 0.160 W/mK | Vulcanite ProTherm datasheet, 128 kg/m³ blanket |
The k-value, shrinkage and tensile figures on the manufacturer datasheet are for 128 kg/m³ blanket. This roll is 96 kg/m³, so read them as indicative of the material rather than as measured values for this product. Email us if your specification needs figures at 96 kg/m³.
Applications
- Heat treatment and annealing furnaces
- Furnace door linings, seals and hot face repairs
- Reheating furnace and ladle covers
- Reformer and pyrolysis lining
- Tube seals, gaskets and expansion joints
- High temperature pipe, duct and tubing insulation
- Boiler insulation and boiler doors
- Reusable turbine covers
- Glass furnace crown insulation
- Veneer over existing refractory
Choose this grade if
Choose ProTherm when the hot face runs above the 750°C ceiling of the Vulcanite Armor rock wool range, for example furnace and kiln linings, boiler doors and ladle covers.
Compare the rangeCeramic 96 questions
What is the difference between the classification temperature and the working temperature?
The datasheet lists a classification temperature of 1260°C and a working temperature of 1050°C. Specify against the working temperature, 1050°C.
What sizes does ProTherm come in?
We stock one size: 96 kg/m³ at 610mm wide and 25mm thick, in 7,32m rolls. The manufacturer datasheet also lists a 50mm blanket, which we do not hold in stock. Email us for a quote on it.
How does ProTherm differ from the Armor rock wool blanket?
ProTherm is an aluminium silicate ceramic fibre blanket with a working temperature of 1050°C. Vulcanite Armor is a wire mesh stitched rock wool blanket rated up to 750°C. The material and the temperature band are different.
Full technical parameters on the datasheet
Every grade, every mean temperature and every test standard on one sheet.
